Taiwan Baoyuan control system
User-friendly interface, easy operation and fast response.
Four spindles can be used to process grooving, milling, cutting, and drilling etc.
Professionally made, ensure the machine
running accurately in safe with very good
resolution and accuracy.
Precision ground 30 mm imported linear
guide rails attached to the gantry, with centralized
lubrication system to the bearing blocks to
guarantee smooth travel of the spindle motor assembly.
vacuum pumps ensure the powerful suction.
Type: DryPower: 7.5kw
Suction flowrate:250m3/h
Material: 2.8CM thickness

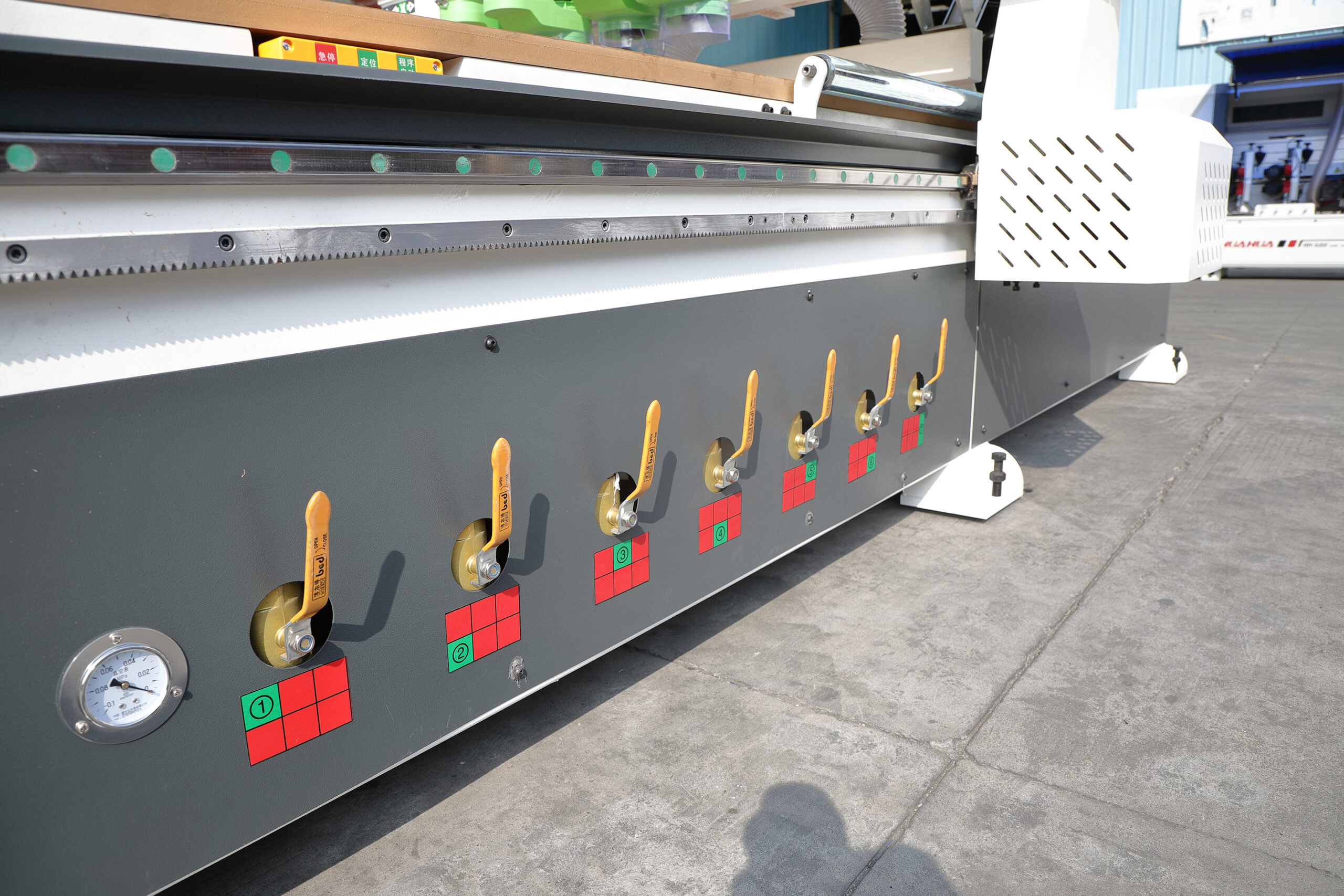

PVC boardWorktable isdivided into 7 parts, 4 big holes
in each part to ensure the adsorption is equal.
Each area can work independently
The sensor will help measure the Z axis height distance
Two stations are processed at the same time to improve work efficiency.
Model | SKG-604HA |
Working Area | 1300*2800mm(2) |
Vacuum area | 7 areas |
Max. Moving Speed of X axis | 80m/min |
Max. Moving Speed of Y axis | 80m/min |
Max. Moving Speed of Z axis | 20m/min |
Spindle quantity | 4 |
Spindle power | 6KW*4 |
Drilling Unit | / |
Vacuum power | 7.5KW |
Vacuum power air volume | 250m³/h |
Total power | 35.5kw |
Machine size | 6551*3340*2816mm |
Gross weight | /kg |
Precision cutting, drilling and milling combined in one machine. Achieve flexible production.
