Using HUAHUA independently developed CNC drilling heads, Manufacturing in accordance with international standards,After three-coordinate detection, the accuracy is guaranteed.
One time processing can complete panel 6-side drilling & 2-side grooving works.
Drilling bits:
Top: (Vertical 12 + Horizontal 8)*2 groups
Bottom: Vertical 9pcs
Milling spindle: 3.5kw * 2pcs (1 Top + 1 Bottom)
Both top and bottom drilling heads moving by Pinion and rack transmission, ensure process precision.
When two holes distance more than 85mm, two drilling heads simultaneous processing
Suit for Bathroom cabinet & kitchen cabinet production

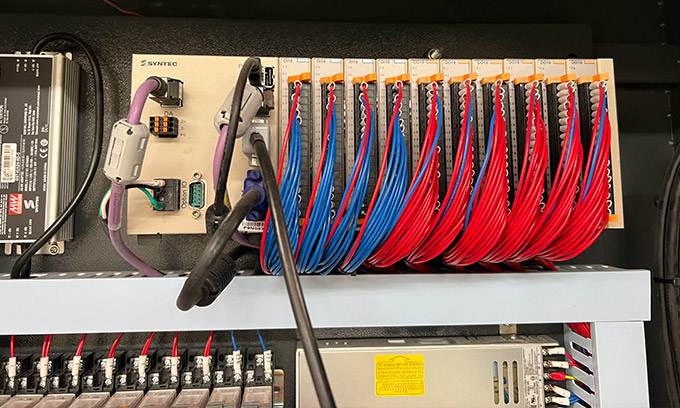

Taiwan Syntec control system + Taiwan Syntec servo motor
1.Taiwan Syntec absolute value control, no need for homing, machine can be used immediately once power on.
2. High performance and stability during long service life;
3. After-sales service points all over the world

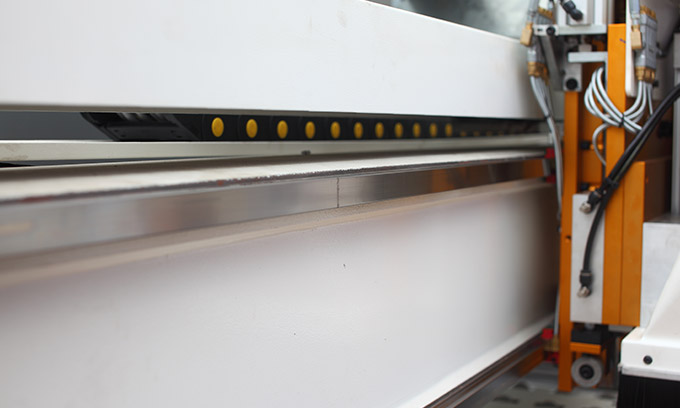

Double clamps is adopted to automatically control the panel feeding and positioning according to the computer drilling program.
1. Taiwan’s Syntec Servo Motor control clamp;
2. Fast and precise positioning;
3. The clamp moving speed can reach up to 130m/min.
Using 21-inch color screen to control the display,
Machine can connect internet or wifi, more easier for transfer processing data and remote control service
Support barcode / QR code, scan and automatically load processing graphics files like MPR, DXF, BAN, XML etc.,and automatically generate NC program processing
Convenient and efficient opertion
Bottom dust collection device collect the scraps of the panel to ensure smooth processing.
SKH-612MS optional side slot, ATC tool changer, side discharge table, left side feeding machine and HHM nesting software.
For more options, please consult our sales.
Processing Size Range: |
Min. Width of work-piece | 50mm |
Max. Width of work-piece | 1200mm | |
Max. Length of work-piece | 5000mm | |
Min. Length of work-piece | 250mm | |
Max. Thickness of work-piece | 48mm | |
Min. Thickness of work-piece | 10mm | |
Working Stoke & Max. Position Speed: |
X axis: | 5410mm & 130m/min |
Y axis: | 1630mm & 85m/min | |
Z axis: | 140mm & 30m/min | |
U axis | 5410mm & 130m/min | |
V axis | 1340mm & 80m/min | |
Waxis | 110mm & 30m/min | |
A axis: | 1190mm & 30m/min | |
Y2 axis: | 1630mm & 85m/min | |
Z2 axis: | 90mm & 30m/min | |
TOP Drilling unit: | Vertical drilling bits | 12pcs*2 |
Horizontal drilling bits | 8pcs*2 | |
Drilling head motor speed | 2800rmp | |
Drilling head motor power | 2.2kw*2 | |
Router Motor power | 3.5kw speed18000rpm | |
Bottom Drilling unit: | Vertical drilling bits | 9 |
Horizontal drilling bits | 0 | |
Drilling head motor speed | 2800rmp | |
Drilling head motor power | 2.2kw | |
Router Motor power | 3.5kw speed18000rpm | |
Other Data: | Working table height | 960mm |
Total Power | 24.1KW | |
Voltage | 220V/380V/415V/ OPTION | |
working air pressure | 0.7-0.8Mpa | |
Vacuum flow | 9400m³/h | |
Weight | 3850KG | |
Overall size | 6480*2840*2200mm |
6 sides drilling, grooving, meet all kinds of furniture production needs.
