Using HUAHUA independently developed CNC drilling heads, Manufacturing in accordance with international standards,After three-coordinate detection, the accuracy is guaranteed.

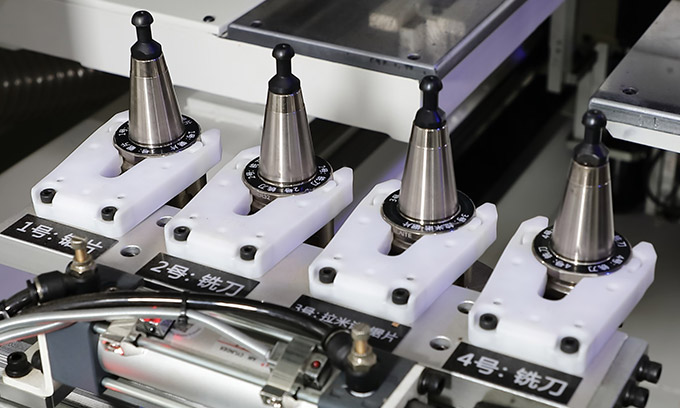

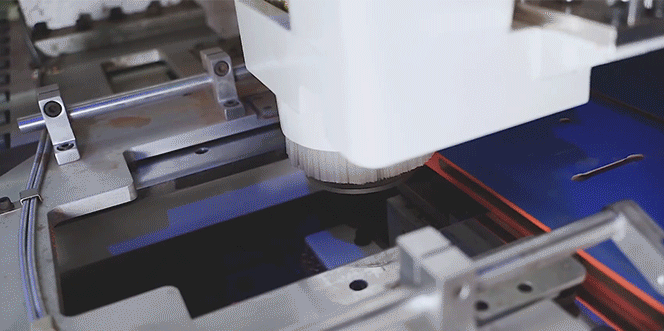

Using 4pcs linear ATC tool magazine, suit for processing panel surface side and 4 sides slotting, Lamello processing, the corresponding tools can be automatically replaced according to different process requirements.
6kw high speed spindle with 4pcs ATC tool changer.

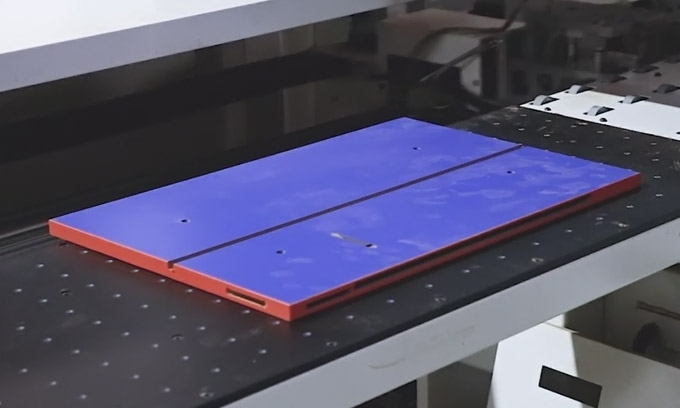

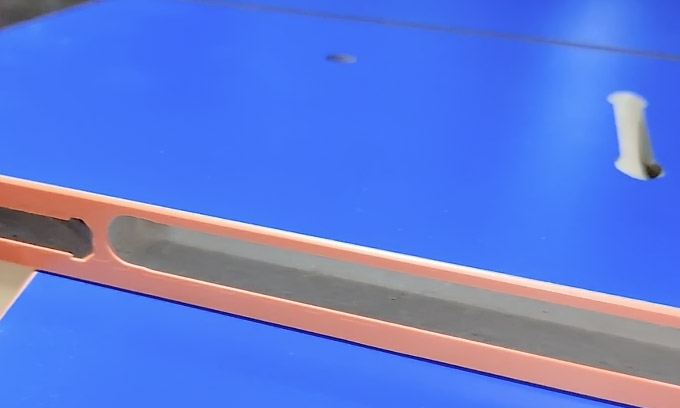

Can processing panel 6 sides milling, grooving and lamello works in one time.

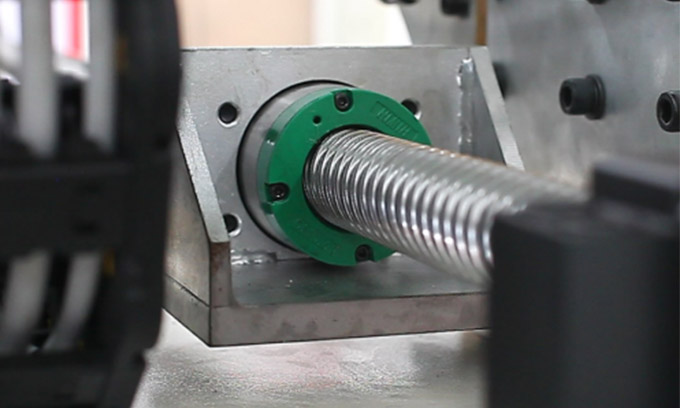

Drilling heads using ball screw drive, the screw drive error is within 0.05-0.1MM, the cumulative error is within ±0.2MM, and the service life of the whole machine is improved.
1.Taiwan Syntec absolute value control, no need for homing, machine can be used immediately once power on.
2. High performance and stability during long service life;
1.Taiwan Syntec servo motor control clamp, no need for homing, machine can be used immediately once power on.
2.The clamp moving speed can reach up to 130m/min, fast positioning and drilling

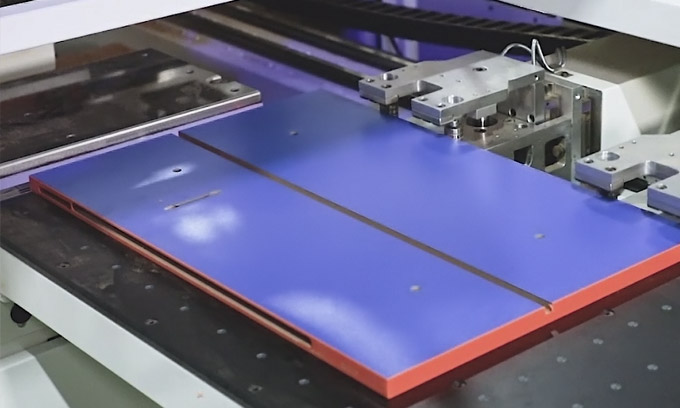

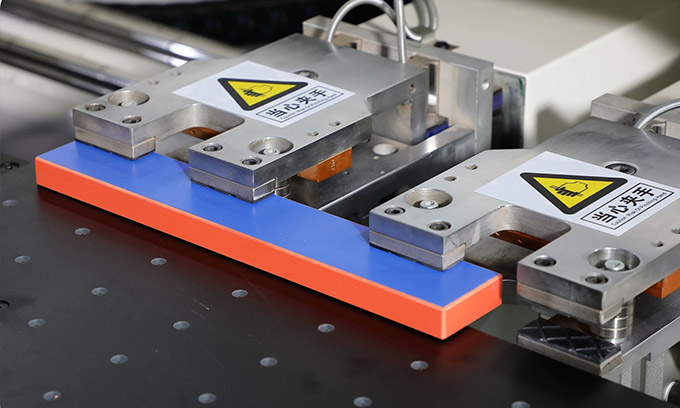

The double clamps mechanism is adopted to automatically control the feeding and positioning of the panel according to the computer drilling program.

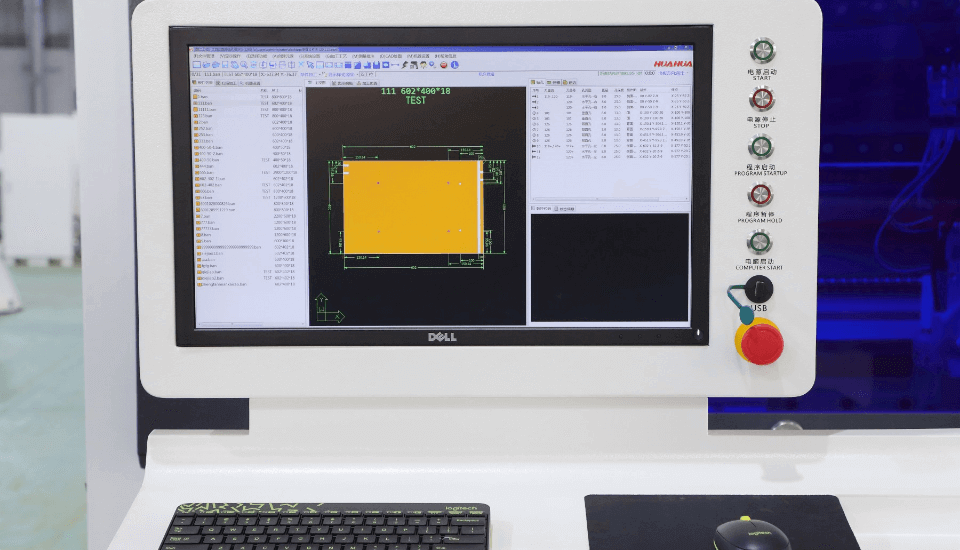

Using 21-inch color screen to control the display,
Machine can connect internet or wifi, more easier for transfer processing data and remote control service

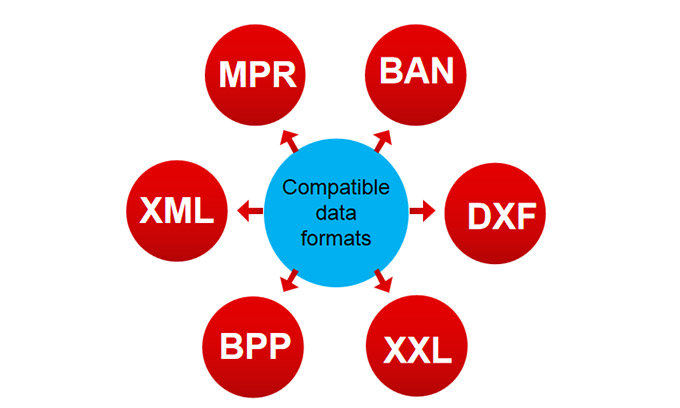

Support barcode / QR code, scan and automatically load processing graphics files like MPR, DXF, BAN, XML etc.,and automatically generate NC program processing
Convenient and efficient opertion

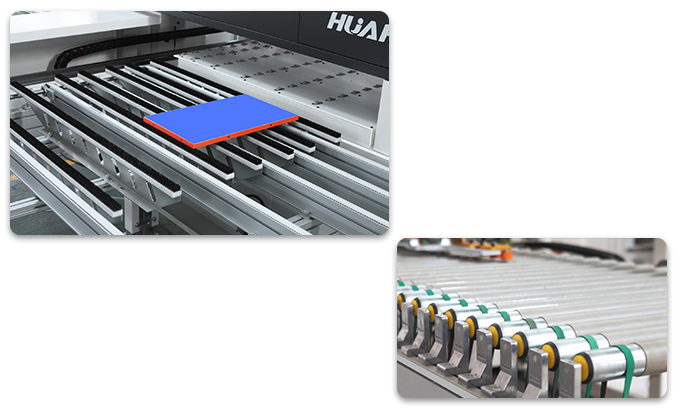

SKH-612HT machine can change air floating unloading table to be side discharge table or conveyor rollers
Processing Size Range: |
Min. Width of work-piece | 50mm |
Max. Width of work-piece | 1200mm | |
Max. Length of work-piece | 5000mm | |
Min. Length of work-piece | 250mm | |
Max. Thickness of work-piece | 48mm | |
Min. Thickness of work-piece | 10mm | |
Working Stoke & Max. Position Speed: |
X axis: | 5410mm & 130m/min |
Y axis: | 1705mm & 85m/min | |
Z axis: | 130mm & 30m/min | |
U axis | 5410mm & 130m/min | |
V axis | 1340mm & 80m/min | |
Waxis | 110mm & 30m/min | |
A axis: | 1215mm & 30m/min | |
TOP Drilling unit: | Vertical drilling bits | 12 pcs |
Horizontal drilling bits | 4 ( X axis) + 4 ( Y axis) | |
Drilling head motor speed | 2800rmp | |
Drilling head motor power | 2.2kw | |
ATC tool unit | ATC | 4pcs |
Tool distance | 85mm | |
Spindle power | 6kW | |
Cylinder stroke | 255mm | |
Process width | 50-1000mm | |
Bottom Drilling unit: | Vertical spindles | 9 |
Horizontal Spindle | 0 | |
Drilling head motor speed | 2800rmp | |
Drilling head motor power | 2.2kw | |
Router Motor power | 3.5kw speed18000rpm | |
Other Data: | Working table height | 960mm |
Total Power | 21.9KW | |
Voltage | 220V/380V/415V/ OPTION | |
Vacuum flow | 7200m³/h | |
working air pressure | 0.7-0.8Mpa | |
Weight | 3700KG | |
Overall size | 6480x2840x2200mm |
6 sides drilling, grooving, meet all kinds of furniture production needs.
