Using HUAHUA independently developed CNC drilling heads, Manufacturing in accordance with international standards,After three-coordinate detection, the accuracy is guaranteed.
One time processing can complete panel 6-side drilling & 2-side grooving works.
Drilling bits:
Top: (Vertical 12 + Horizontal 8)*2 groups
Bottom: Vertical 9pcs
Milling spindle: 3.5kw * 2pcs (1 Top + 1 Bottom)
Using ball screw drive, the screw drive error is within 0.05-0.1MM, the cumulative error is within ±0.2MM, and the service life of the whole machine is improved.
Taiwan Syntec control system + Taiwan Syntec servo motor
1.Taiwan Syntec absolute value control, no need for homing, machine can be used immediately once power on.
2. High performance and stability during long service life;
When two holes distance more than 85mm, two drilling heads simultaneous processing
Suit for Bathroom cabinet & kitchen cabinet production
Using Industrial PC + 21-inch color screen to control the display,
Machine can connect internet or wifi, more easier for transfer processing data and remote control service
Support barcode / QR code, scan and automatically load processing graphics files like MPR, DXF, BAN, XML etc.,and automatically generate NC program processing.
Convenient and efficient opertion

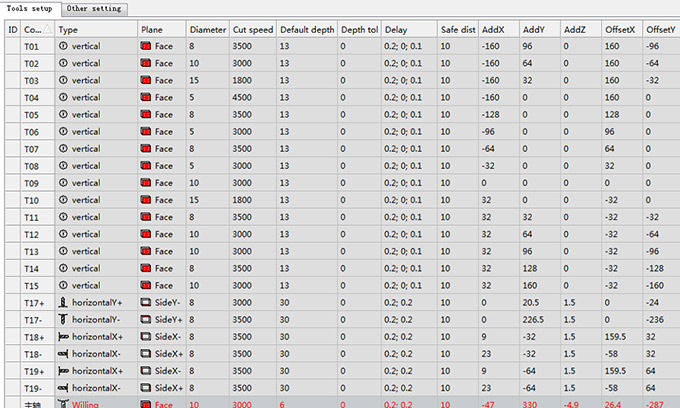

Bring your own database;
Record processing data.
SKH-612HS can be equipped with front and rear rollers to become a automatic line, and can also be equipped with 4 clamps. For more options, please consult our salesman.
Processing Size Range: |
Min. Width of work-piece | 50mm |
Max. Width of work-piece | 1200mm | |
Max. Length of work-piece | 5000mm | |
Min. Length of work-piece | 250mm | |
Max. Thickness of work-piece | 48mm | |
Min. Thickness of work-piece | 10mm | |
Working Stoke & Max. Position Speed: |
X axis: | 5410mm & 130m/min |
Y axis: | 1630mm & 85m/min | |
Z axis: | 140mm & 30m/min | |
U axis | 5410mm & 130m/min | |
V axis | 1360mm & 80m/min | |
Waxis | 110mm & 30m/min | |
A axis: | 1210mm & 30m/min | |
Y2 axis: | 1690mm & 85m/min | |
Z2 axis: | 130mm & 30m/min | |
TOP Drilling unit: | Vertical drilling bits | 12pcs*2 |
Horizontal drilling bits | 8pcs*2 | |
Drilling head motor speed | 2800rmp | |
Drilling head motor power | 2.2kw*2 | |
Router Motor power | 3.5kw speed18000rpm | |
Bottom Drilling unit: | Vertical drilling bits | 9 |
Horizontal drilling bits | 0 | |
Drilling head motor speed | 2800rmp | |
Drilling head motor power | 2.2kw | |
Router Motor power | 3.5kw speed18000rpm | |
Other Data: | Working table height | 960mm |
Total Power | 24.1KW | |
Voltage | 220V/380V/415V/ OPTION | |
working air pressure | 0.7-0.8Mpa | |
Vacuum flow | 9400m³/h | |
Weight | 3850KG | |
Overall size | 6480*2840*2200mm |
6 sides drilling, grooving, meet all kinds of furniture production needs.
