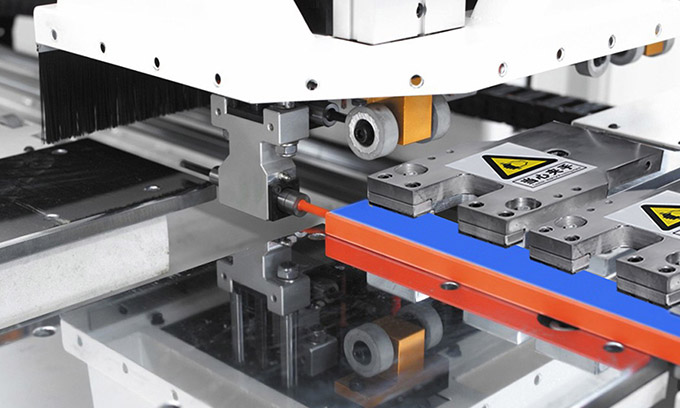

Using HUAHUA independently developed CNC drilling heads, Manufacturing in accordance with international standards,After three-coordinate detection, the accuracy is guaranteed.
One time processing can complete panel 6-side drilling & 2-side grooving works.

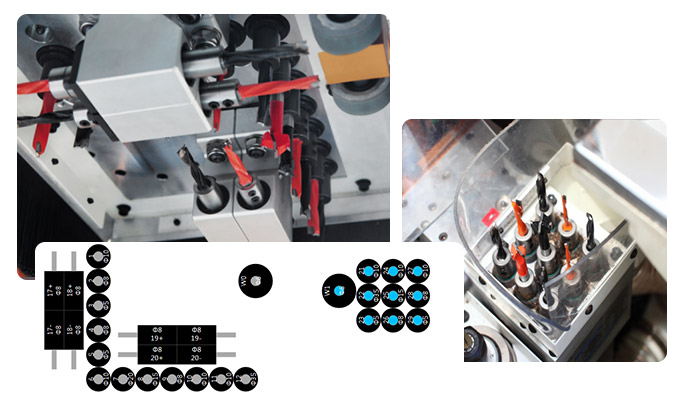

Drilling bits:
Top: Vertical 12pcs + Horizontal 8pcs
Bottom: Vertical 9pcs
Milling spindle: 3.5kw * 2pcs (1 Top + 1 Bottom)
Using ball screw drive, the screw drive error is within 0.05-0.1MM, the cumulative error is within ±0.2MM, and the service life of the whole machine is improved.
Taiwan Syntec control system + Taiwan Syntec servo motor
1. Taiwan Syntec absolute value control, no need for homing, machine can be used immediately once power on.
2. High performance and stability during long service life;
3. Syntec after-sales service branches all over the world.
Using Industrial PC + 21-inch color screen to control the display.
Machine can connect internet or wifi, more easier for transfer processing data and remote control service
Support barcode / QR code, scan and automatically load processing graphics files like MPR, DXF, BAN, XML etc.,and automatically generate NC program processing.
Convenient and efficient opertion
Can drilling min. panel size: 250*50mm
Max. processing size: 5000*1200mm
Meet different panel sizes processing demands

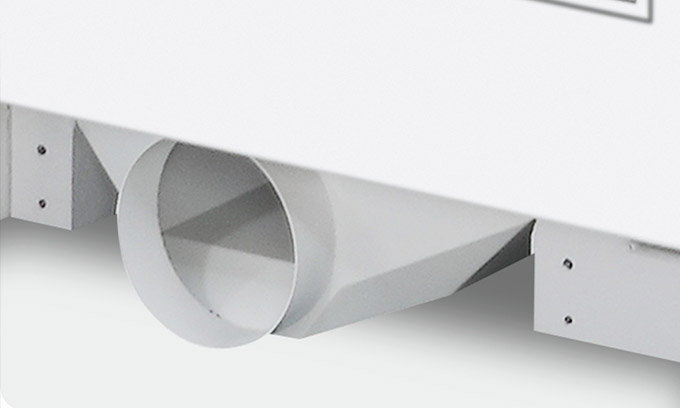

Bottom dust collection device collect the scraps of the panel to ensure smooth processing.

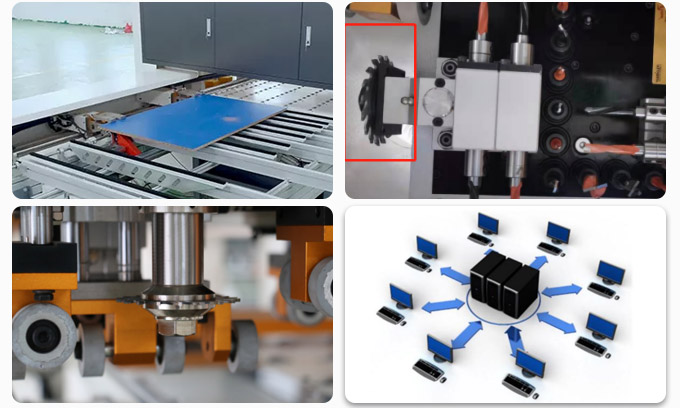

SKH-612H optional side slot, HHM software, flexible discharge or automatic loading and unloading rollers, saw slotting saw balde etc., for more details please contact with our sales.
Processing Size Range: |
Min. Width of work-piece | 50mm |
Max. Width of work-piece | 1200mm | |
Max. Length of work-piece | 5000mm | |
Min. Length of work-piece | 250mm | |
Max. Thickness of work-piece | 48mm | |
Min. Thickness of work-piece | 10mm | |
Working Stoke & Max. Position Speed: |
X axis: | 5410mm & 130m/min |
Y axis: | 1680mm & 85m/min | |
Z axis: | 140mm & 30m/min | |
U axis | 5410mm & 130m/min | |
V axis | 1340mm & 80m/min | |
Waxis | 110mm & 30m/min | |
A axis: | 1215mm & 30m/min | |
TOP Drilling unit: | Vertical drilling bits | 12 pcs |
Horizontal drilling bits | 4 ( X axis) + 4 ( Y axis) | |
Drilling head motor speed | 2800rmp | |
Drilling head motor power | 2.2kw | |
Router Motor power | 3.5kw speed18000rpm | |
Bottom Drilling unit: | Vertical spindles | 9 |
Horizontal Spindle | 0 | |
Drilling head motor speed | 2800rmp | |
Drilling head motor power | 2.2kw | |
Router Motor power | 3.5kw speed18000rpm | |
Other Data: | Working table height | 960mm |
Total Power | 18.9KW | |
Voltage | 220V/380V/415V/ OPTION | |
Vacuum flow | 7200m³/h | |
working air pressure | 0.7-0.8Mpa | |
Weight | 3500KG | |
Overall size | 6480x2840x2200mm |
6 sides drilling, grooving, meet all kinds of furniture production needs.
