Taiwan Synteccontrol system
User-friendly interface, easy operation and fast response.
After-sales service points all over the world
Powerful12KW automatic tool change
Spindle, 24000rpm, Powerful twisting force and
fast processing, is suitable for heavy cutting, milling etc.,
will keep the surface of work pieces very smooth

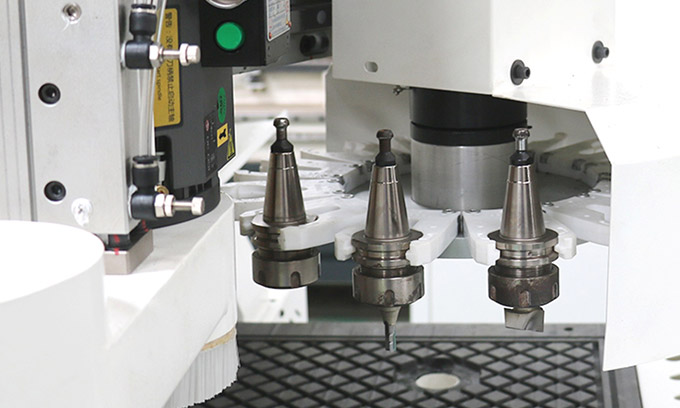

The round type tool magazine can hold 12 tools, and base on the principle of proximity to change tools. It is more efficient to complicated working on wood
Professionally made, ensure the machine
running accurately in safe with very good
resolution and accuracy.
Precision ground 30 mm imported linear
guide rails attached to the gantry, with centralized
lubrication system to the bearing blocks to
guarantee smooth travel of the spindle motor assembly.
With position pins to make panel straight and can not move;
Quantity: Y axis 4 pcs, X axis 2pcs, total 6 pcs.
Model | SKG-812 |
Working Area | 1300*2800mm |
Vacuum area | 7 areas |
Max. Moving Speed of X axis | 80m/min |
Max. Moving Speed of Y axis | 80m/min |
Max. Moving Speed of Z axis | 20m/min |
Spindle quantity | 1 |
Spindle power | 12KW |
Drilling Unit | Option |
Vacuum power | 7.5KW |
Vacuum power air volume | 250m³/h |
Total power | 24.25kw |
Machine size | 4360*3390*2954mm |
Gross weight | 2300kg |
Precision cutting, drilling and milling combined in one machine. Achieve flexible production.
