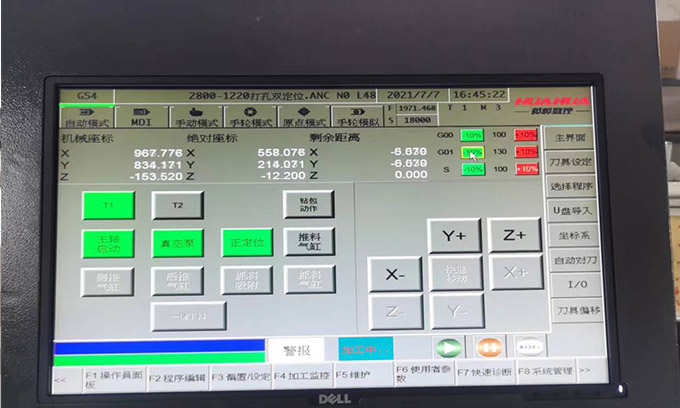

Taiwan Syntec control system
User-friendly interface, easy operation and fast response.
After-sales service points all over the world

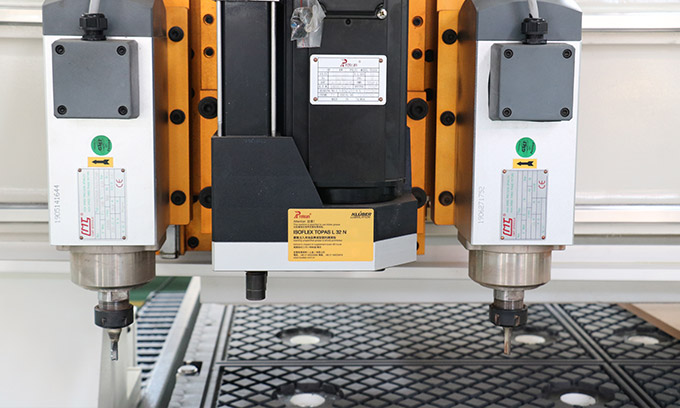

Powerful 6kw air cooling Spindle, 18000rpm,
Powerful twisting force and fast processing,
is suitable for heavy cutting, milling etc.,
will keep the surface of work pieces very smooth

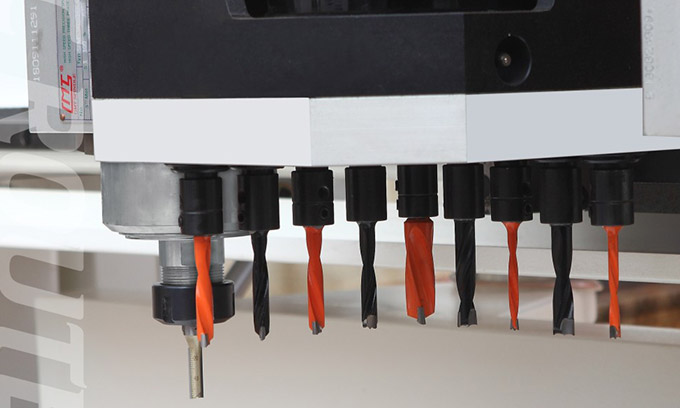

HUAHUA CNC precision drilling unit manufactured in accordance with international standards, high precision.
Professionally made, ensure the machine
running accurately in safe with very good
resolution and accuracy.

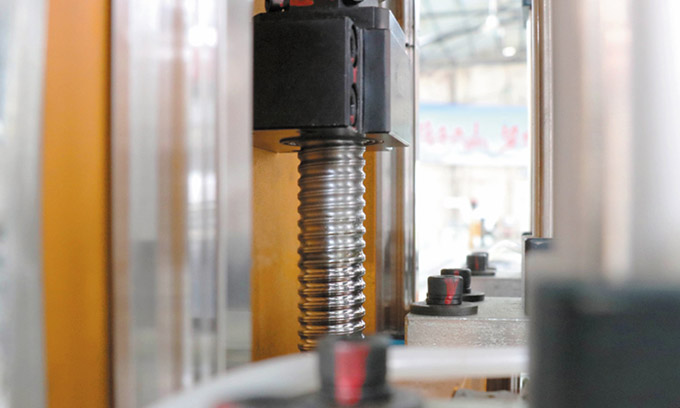

The transmission error of the screw rod is within 0.05-0.1MM, and the cumulative error is within 0.1MM, which improves the precision of the whole machine.
Precision ground 30 mm imported linear
guide rails attached to the gantry, with centralized
lubrication system to the bearing blocks to
guarantee smooth travel of the spindle motor assembly.

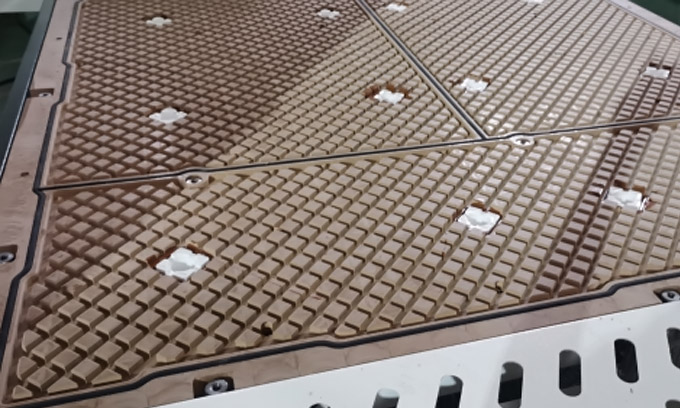

Material: 2.8CM thickness PVC board; 2.Worktable is divided into 7 parts, 6 big holes in each part to ensure the adsorption is equal.Each area can work independently.

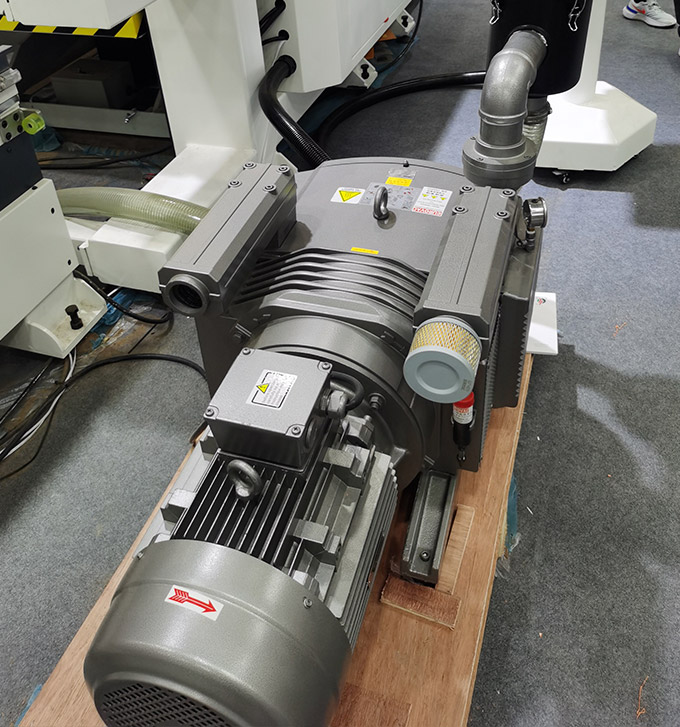

vacuum pumps ensure the powerful suction.
Type: Dry
Power: 7.5kw
Suction flowrate:250m3/h per set
It can automatic measure tool length of Z axis
Model | SKG-802VA |
Working Area | 1300*2800mm*2 tables |
Vacuum area | 7 +7areas |
Max. Moving Speed of X axis | 80m/min |
Max. Moving Speed of Y axis | 80m/min |
Max. Moving Speed of Z axis | 20m/min |
Spindle quantity | 2 |
Spindle power | 6KW |
Drilling Unit | 9V |
Vacuum power | 7.5KW |
Vacuum power air volume | 250m³/h |
Total power | 25.7kw |
Machine size | 6945*3390*2954mm |
Gross weight | 4800KG |
1.Precision cutting, drilling and milling combined in one machine. Achieve flexible production.
2 .It is used for the simultaneous processing of panel furniture, cabinets, wardrobes, office furniture, etc., with processing procedures such as drilling, cutting, milling, and carving. .
