High-efficiency horizontal side drilling equipment,drilling and milling grooves can be complete at one time,which can switch between long and short panels to meet the needs of a variety of panel technology.

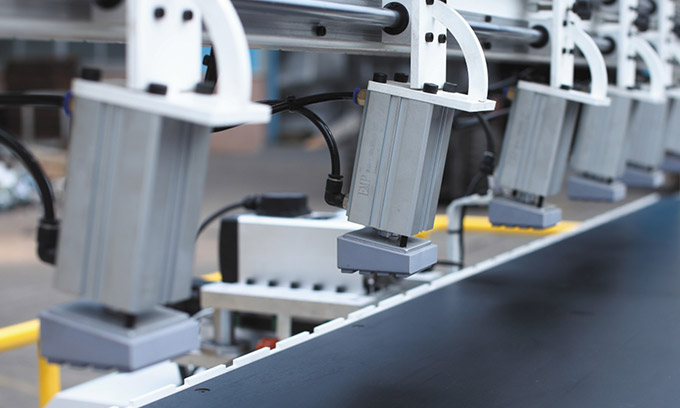

Pnuematic oblique pressure,precise perforation,precise positioning of the p during processing is not easy to be deflected.

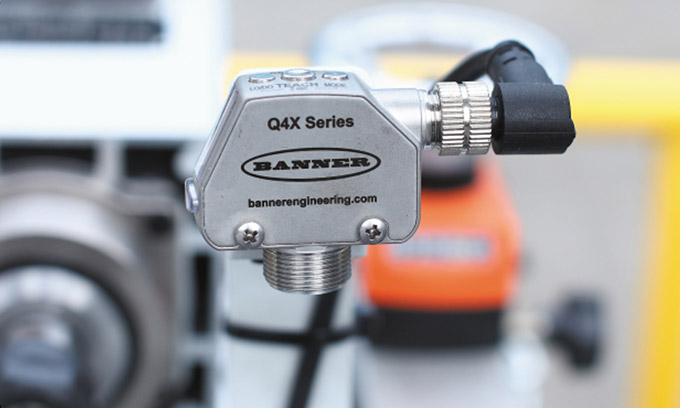

Laser induction positioning,precise control of drilling improve processing accuracy.
Single worktable panel length | ≤2550mm |
Multi-worktable panel length | ≤800mm |
Panel width | ≥60mm |
Panel thickness | 10-50mm |
Maximum speed | 75m/min |
Processing methods | Laser scanning+canning label |
Drilling motor | 2.2kw(18000rpm) |
Worktable | Three worktable |
Total power | 3.35kw |
Overall size | 3200*2100*1500mm |
Drilling depth | 50mm |
Maximum drilling diameter | 12mm |
Side drilling, Precise and efficient.
