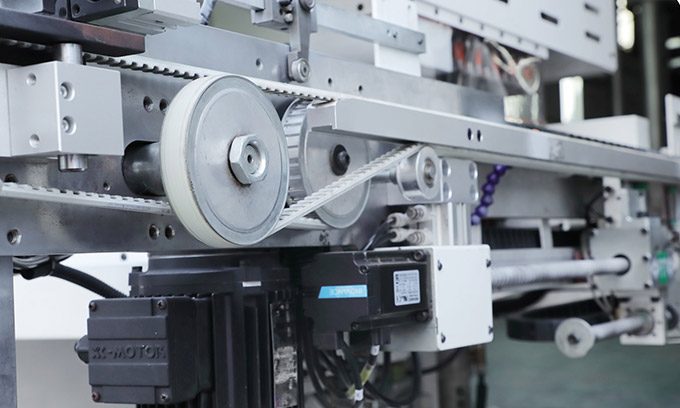

Synchronous belt conveyor;
Stable delivery and higher efficiency.

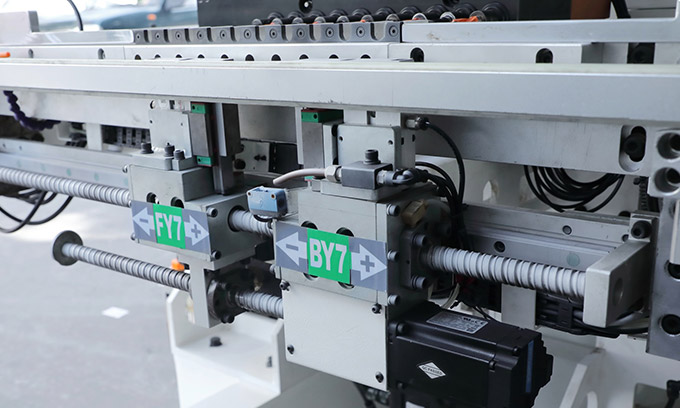

Dual servo gripper jaw positioning, precise drilling;
Precise positioning of the panel during processing, it is not easy to be deflected.

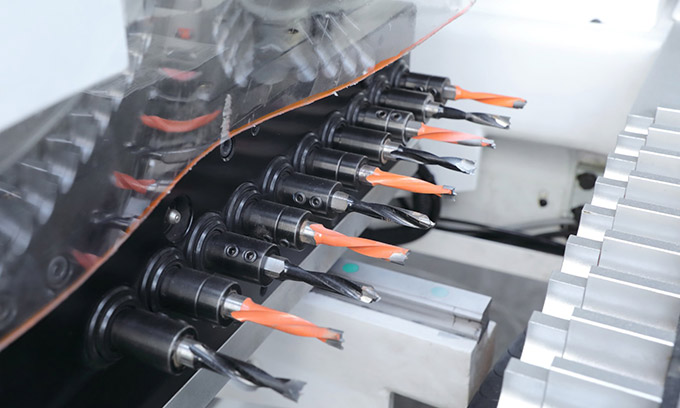

Precise control of vertical holes and horizontal holes;
Ensure that each processed panel is controlled within 0.1mm.
Support barcode / QR code, scan and automatically load processing graphics files like MPR, DXF, BAN, XML etc.,and automatically generate NC program processing
Compatible with Multiple Data Formats
Convenient and efficient opertion
Processing width(X aixs) | 160-850(mm) | Number of vertical drill bits | up left drilling box: 14pcs, Up right drilling box: 14pcs |
Processing length(Y aixs) | 50-300mm | Processing depth | Max 45mm |
Processing length(Z aixs) | 10-50 (mm) | Height of working table | 975.5mm |
Maximum processing thickness | 50mm | Total power | 22.52kw |
Min. distance of drilling holes in upper vertical row |
100mm | Overall size | 3550*2800*2220mm |
Number of horizontal drill bits | left drilling box: 10pcs, right drilling box: 10pcs |
Machine weight | 3000kg |
Panel bottom side drilling and 2 sides drilling, precise and efficient.
