Using HUAHUA independently developed CNC drilling heads, Manufacturing in accordance with international standards,After three-coordinate detection, the accuracy is guaranteed.
One time processing can complete panel 6-side drilling & 2-side grooving works.
Drilling bits:
Top: Vertical 9pcs + Horizontal 8pcs
Bottom: Vertical 9pcs
Milling spindle: 3.5kw * 2pcs (1 Top + 1 Bottom)
Both top and bottom drilling heads moving by Pinion and rack transmission, ensure process precision.

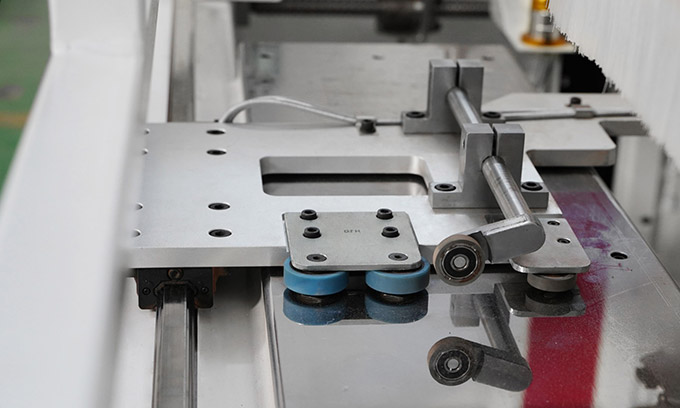

Automatically control the side aligning stroke to adopt to the positioning needs of different panel widths.
1.Taiwan Syntec absolute value control, no need for homing, machine can be used immediately once power on.
2. High performance and stability during long service life;
3. Syntec after-sales service branches all over the world.
1.Taiwan Syntec servo motor control clamp, no need for homing, machine can be used immediately once power on.
2.The clamp moving speed can reach up to 130m/min, fast positioning and drilling
1. Taiwan’s Syntec Servo Motor control clamp;
2. Fast and precise positioning;
3. The clamp moving speed can reach up to 130m/min.
Industrial PC + 21-inch color screen display,
Machine can connect internet or wifi, more easier for transfer processing data and remote control service
Support barcode / QR code, scan and automatically load processing graphics files like MPR, DXF, BAN, XML etc.,and automatically generate NC program processing, Convenient and efficient opertion
Convenient and efficient opertion
Bottom dust collection device collect the scraps of the panel to ensure smooth processing.
SKH-612M optional side slot and surface slotting, ATC tool changer and match with side discharge lifting unloading table A variety of unloading options to facilitate automatic connection.
For more options, please consult our sales.
Processing Size Range: |
Min. Width of work-piece | 50mm |
Max. Width of work-piece | 1200mm | |
Max. Length of work-piece | 5000mm | |
Min. Length of work-piece | 250mm | |
Max. Thickness of work-piece | 48mm | |
Min. Thickness of work-piece | 10mm | |
Working Stoke & Max. Position Speed: |
X axis: | 5410mm & 130m/min |
Y axis: | 1680mm & 85m/min | |
Z axis: | 140mm & 30m/min | |
U axis | 5410mm & 130m/min | |
V axis | 1340mm & 80m/min | |
Waxis | 110mm & 30m/min | |
A axis: | 1215mm & 30m/min | |
TOP Drilling unit: | Vertical drilling bits | 9 pcs ( 12pcs option) |
Horizontal drilling bits | 4 ( X axis) + 4 ( Y axis) | |
Drilling head motor speed | 2800rmp | |
Drilling head motor power | 2.2kw | |
Router Motor power | 3.5kw speed18000rpm | |
Bottom Drilling unit: | Vertical spindles | 9 |
Horizontal Spindle | 0 | |
Drilling head motor speed | 2800rmp | |
Drilling head motor power | 2.2kw | |
Router Motor power | 3.5kw speed18000rpm | |
Other Data: | Working table height | 960mm |
Total Power | 18.9KW | |
Voltage | 220V/380V/415V/ OPTION | |
Vacuum flow | 7200m³/h | |
working air pressure | 0.7-0.8Mpa | |
Weight | 3450KG | |
Overall size | 6480x2840x2200mm |
6 sides drilling, grooving, meet all kinds of furniture production needs.
